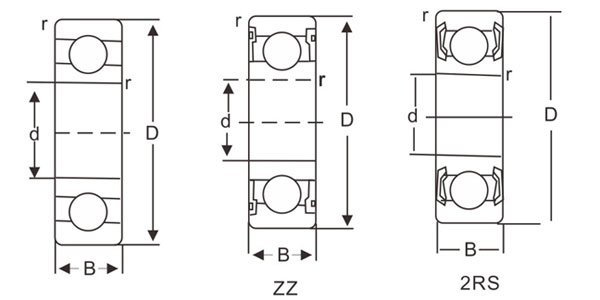

Read MoreBearing NO. | Shape Dimension(mm) | Steel Ball | basic Load Rating(KN) | Max Speed(rpm) | Weight (kg) | ||||||||||
Bore d | Outer Diameter D | Width B | Radius r min | Size mm | Quantity NO. | Dynamic Cr | Static Cor | Grease | Oil | ||||||
mm | inch | mm | inch | mm | inch | mm | inch | ||||||||
623 | 3 | 0.1181 | 10 | 0.3937 | 4 | 0.1575 | 0.15 | 0.0059 | 1.588 | 7 | 0.5 | 0.2156 | 38000 | 48000 | 0.0015 |
624 | 4 | 0.1575 | 13 | 0.5118 | 5 | 0.1969 | 0.2 | 0.0079 | 2.381 | 6 | 1.15 | 0.4 | 36000 | 45000 | 0.0032 |
625 | 5 | 0.1969 | 16 | 0.6299 | 5 | 0.1969 | 0.3 | 0.0118 | 2.381 | 8 | 1.88 | 0.68 | 32000 | 40000 | 0.0048 |
626 | 6 | 0.2362 | 19 | 0.748 | 6 | 0.2362 | 0.3 | 0.0118 | 3.969 | 6 | 2.8 | 1.05 | 28000 | 36000 | 0.0075 |
627 | 7 | 0.2756 | 22 | 0.8661 | 7 | 0.2756 | 0.3 | 0.0118 | 3.969 | 7 | 3.28 | 1.35 | 26000 | 34000 | 0.012 |
628 | 8 | 0.315 | 24 | 0.9449 | 8 | 0.315 | 0.3 | 0.0118 | 3.969 | 8 | 3.35 | 1.4 | 24000 | 32000 | 0.017 |
629 | 9 | 0.3543 | 26 | 1.0236 | 8 | 0.315 | 0.3 | 0.0118 | 4.5 | 7 | 4.45 | 1.95 | 22000 | 30000 | 0.019 |
6200 | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 0.6 | 0.0236 | 4.763 | 8 | 5.1 | 2.38 | 19000 | 26000 | 0.028 |
6201 | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 0.6 | 0.0236 | 5.953 | 7 | 6.82 | 3.05 | 18000 | 24000 | 0.034 |
6202 | 15 | 0.5906 | 35 | 1.378 | 11 | 0.4331 | 0.6 | 0.0236 | 5.953 | 8 | 7.65 | 3.72 | 17000 | 22000 | 0.043 |
6203 | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 0.6 | 0.0236 | 6.747 | 8 | 9.58 | 4.47 | 16000 | 20000 | 0.062 |
6204 | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 1 | 0.0394 | 7.938 | 8 | 9.88 | 6.2 | 14000 | 18000 | 0.102 |
6205 | 25 | 0.9843 | 52 | 2.0472 | 15 | 0.5906 | 1 | 0.0394 | 7.938 | 9 | 10.78 | 6.98 | 12000 | 16000 | 0.12 |
6206 | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 1 | 0.0394 | 9.525 | 9 | 14.97 | 10.04 | 9500 | 13000 | 0.19 |
6207 | 35 | 1.378 | 72 | 2.8346 | 17 | 0.6693 | 1.1 | 0.0433 | 11.112 | 9 | 19.75 | 13.67 | 8500 | 11000 | 0.27 |
6208 | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 1.1 | 0.0433 | 12 | 9 | 22.71 | 15.94 | 8000 | 10000 | 0.37 |
6209 | 45 | 1.7717 | 85 | 3.3465 | 19 | 0.748 | 1.1 | 0.0433 | 12 | 10 | 24.36 | 17.71 | 7000 | 9000 | 0.38 |
6210 | 50 | 1.9685 | 90 | 3.5433 | 20 | 0.7874 | 1.1 | 0.0433 | 12.7 | 10 | 26.98 | 19.84 | 6700 | 8500 | 0.45 |
6211 | 55 | 2.1654 | 100 | 3.937 | 21 | 0.8268 | 1.5 | 0.0591 | 14.288 | 10 | 33.37 | 25.11 | 6000 | 7500 | 0.603 |
6212 | 60 | 2.3622 | 110 | 4.3307 | 22 | 0.8661 | 1.5 | 0.0591 | 15.081 | 10 | 36.74 | 27.97 | 5600 | 7000 | 0.789 |
6213 | 65 | 2.5591 | 120 | 4.7244 | 23 | 0.9055 | 1.5 | 0.0591 | 16.669 | 10 | 44.01 | 34.18 | 5000 | 6300 | 0.99 |
6214 | 70 | 2.7559 | 125 | 4.9213 | 24 | 0.9449 | 1.5 | 0.0591 | 16.669 | 11 | 46.79 | 37.59 | 4800 | 6000 | 1.084 |
6215 | 75 | 2.9528 | 130 | 5.1181 | 25 | 0.9843 | 1.5 | 0.0591 | 17.462 | 11 | 50.85 | 41.26 | 4500 | 5600 | 1.171 |
6216 | 80 | 3.1496 | 140 | 5.5118 | 26 | 1.0236 | 2 | 0.0787 | 18.256 | 11 | 55.04 | 45.09 | 4300 | 5300 | 1.448 |
6217 | 85 | 3.3465 | 150 | 5.9055 | 28 | 1.1024 | 2 | 0.0787 | 19.844 | 11 | 64.01 | 53.28 | 4000 | 5000 | 1.803 |
6218 | 90 | 3.5433 | 160 | 6.2992 | 30 | 1.1811 | 2 | 0.0787 | 22.225 | 10 | 73.83 | 60.76 | 3800 | 4800 | 2.17 |
6219 | 95 | 3.7402 | 170 | 6.6929 | 32 | 1.2598 | 2.1 | 0.0827 | 24 | 10 | 101 | 78.5 | 3600 | 4500 | 2.6 |
6220 | 100 | 3.937 | 180 | 7.0866 | 34 | 1.3386 | 2.1 | 0.0827 | 25.4 | 10 | 119 | 91.8 | 3400 | 4300 | 3.15 |
6221 | 105 | 4.1339 | 190 | 7.4803 | 36 | 1.4173 | 2.1 | 0.0827 | 26.988 | 10 | 130 | 101 | 3200 | 4000 | 3.67 |
6222 | 110 | 4.3307 | 200 | 7.874 | 38 | 1.4961 | 2.1 | 0.0827 | 28.575 | 10 | 141 | 115 | 3000 | 3800 | 4.1 |
