Wholesale 6300 series deep groove ball bearing

Home / Product / 6300 series

6300 series Deep Groove Ball Bearing Manufacturers

6300 series deep groove ball bearing

The 6300 series of deep groove ball bearings are single-row bearings with deep raceway grooves on the inner and outer rings. They are capable of accommodating radial loads, as well as limited axial loads in both directions. The "6300" in the designation indicates the nominal size of the bearing, which refers to the bore diameter.
Characteristics of the 6300 series deep groove ball bearings:
Versatility: These bearings are versatile and widely used in various applications, including electric motors, automotive components, industrial machinery, pumps, and more.
Radial Load Capacity: The deep raceway grooves enable the bearings to support radial loads, which are forces acting perpendicular to the shaft's axis. They can handle both light and moderate radial loads.
Axial Load Capacity: While primarily designed for radial loads, the 6300 series bearings can also withstand limited axial loads in both directions. However, they are not as suitable for heavy axial loads compared to thrust ball bearings.
Speed and Low Friction: Deep groove ball bearings have relatively low friction due to their smooth raceway surfaces. This allows them to operate at high speeds.
Sealing Options: Depending on the specific variant, 6300 series bearings may come with various sealing options to provide protection against contaminants and retain lubrication. Common sealing options include rubber seals (RS) or metal shields (ZZ).

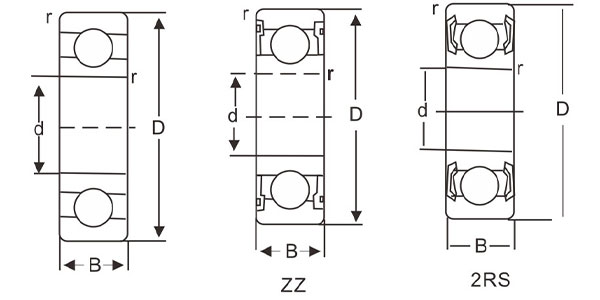

Bearing  NO. Shape Dimension(mm) Steel Ball basic Load Rating(KN)  Max Speed(rpm) Weight  (kg)
Bore d Outer Diameter D Width B Radius r min Size  mm Quantity  NO. Dynamic  Cr Static  Cor Grease Oil
mm inch mm inch mm inch mm inch
634 4 0.1575 16 0.6299 5 0.1969 0.3 0.0118 2.381 8 1.447 0.745 32000 40000 0.0049
635 5 0.1969 19 0.748 6 0.2362 0.3 0.0118 3.969 6 2.161 1.163 28000 36000 0.0073
6300 10 0.3937 35 1.378 11 0.4331 0.6 0.0236 6.35 7 5.88 3.47 20000 26000 0.054
6301 12 0.4724 37 1.4567 12 0.4724 1 0.0394 7.938 6 7.48 4.65 17000 22000 0.058
6302 15 0.5906 42 1.6535 13 0.5118 1 0.0394 7.938 7 8.8 5.43 16000 20000 0.082
6303 17 0.6693 47 1.8504 14 0.5512 1 0.0394 8.731 7 10.45 6.56 15000 19000 0.11
6304 20 0.7874 52 2.0472 15 0.5906 1.1 0.0433 9.525 7 12.26 7.81 13000 17000 0.14
6305 25 0.9843 62 2.4409 17 0.6693 1.1 0.0433 11.5 7 17.22 11.39 10000 14000 0.22
6306 30 1.1811 72 2.8346 19 0.748 1.1 0.0433 12 8 20.77 14.17 9000 12000 0.33
6307 35 1.378 80 3.1496 21 0.8268 1.5 0.0591 13.494 8 25.66 17.92 8000 10000 0.41
6308 40 1.5748 90 3.5433 23 0.9055 1.5 0.0591 15.081 8 31.35 22.38 7000 9000 0.6
6309 45 1.7717 100 3.937 25 0.9843 1.5 0.0591 17.462 8 40.66 30 6300 7500 0.77
6310 50 1.9685 110 4.3307 27 1.063 2 0.0787 19.05 8 47.58 35.71 6000 7000 1.03
6311 55 2.1654 120 4.7244 29 1.1417 2 0.0787 20.638 8 55.05 41.91 5600 6700 1.367
6312 60 2.3622 130 5.1181 31 1.2205 2.1 0.0827 22.225 8 62.88 48.6 5000 6000 1.71
6313 65 2.5591 140 5.5118 33 1.2992 2.1 0.0827 24 8 72.21 56.68 4500 5300 2.1
6314 70 2.7559 150 5.9055 35 1.378 2.1 0.0827 25.4 8 80.1 63.48 4300 5000 2.55
6315 75 2.9528 160 6.2992 37 1.4567 2.1 0.0827 26.988 8 87.25 71.67 4000 4800 3.05
6316 80 3.1496 170 6.6929 39 1.5354 2.1 0.0827 28.575 8 94.57 80.35 3800 4500 3.61
6317 85 3.3465 180 7.0866 41 1.6142 3 0.1181 30.162 8 102.05 89.52 3600 4300 4.284
6318 90 3.5433 190 7.4803 43 1.6929 3 0.1181 32 8 110.81 100.76 3400 4000 4.97
6319 95 3.7402 200 7.874 45 1.7717 3 0.1181 31.75 8 153 119 3300 3900 5.65
6320 100 3.937 215 8.4646 47 1.8504 3 0.1181 36.512 8 173 141 3200 3700 7

Ningbo Yuhong Bearing Co., Ltd.

Ningbo Yuhong Bearing Co., Ltd. is famous China 6300 series deep groove ball bearing manufacturers and wholesale 6300 series deep groove ball bearing Suppliers, serves as a prominent enterprise in the bearing industry within Zhejiang, situated in Pengnan Industrial Park, Henghe Town, Cixi City, Zhejiang Province. Through years of dedicated efforts, Yuhong has evolved into a high-tech enterprise, integrating bearing research and development, manufacturing, testing, and sales. Our primary focus lies in the production of deep-groove ball bearings, with a workforce comprising more than 200 skilled employees. Annually, we manufacture over 80 million pieces. Under our proprietary brands KJYJ and JHOK, we also offer the option of producing bearing products under customer-licensed brands. Our global presence spans across 50 countries and regions, catering primarily to domestic and foreign distributors or production enterprises specializing in bicycles, motorcycles, household appliances, transmission machinery, and equipment, providing comprehensive support services.

At Yuhong, we consider quality as the cornerstone of our enterprise. Rigorously adhering to the 6S lean principles, we ensure strict control over raw material inspection, steel ball and steel tube production, fittings, and bearing processing, assembly, as well as each procedural testing. This unwavering commitment guarantees the stability and reliability of our bearing products. Furthermore, we leverage advanced CNC processing equipment and a full-automatic bearing assembly line for heat treatment, turning, grinding, cleaning, and assembly processes, effectively enhancing product performance stability. Notably, we have achieved ISO9001 quality management system certification, an internationally recognized standard, reinforcing our dedication to maintaining exceptional quality standards.

We specialize in custom 6300 series deep groove ball bearing, We extend a sincere invitation to customers from all walks of life, both domestic and international, to visit us. Together, we can forge friendly cooperation and create mutually beneficial outcomes. Your partnership is essential to our continued growth and success.

Certificates

news

{6300 series Deep Groove Ball Bearing Industry knowledge

Unveiling the Secrets of 6300 Series Deep Groove Ball Bearings: Superior Performance Unleashed


Deep groove ball bearings, particularly the esteemed 6300 series, stand as testament to engineering prowess, silently driving the heart of industrial and mechanical applications. This comprehensive exploration delves into the intricate details that define the 6300 series, revealing the secrets of their remarkable success.
At the heart of the 6300 series' performance lies its ingenious design and robust construction. These chrom steel ball bearings feature a deep raceway groove, meticulously engineered to facilitate the smooth movement of the ball bearings. This design innovation minimizes friction, evenly distributes loads, reduces heat generation, and ultimately extends bearing life, contributing to enhanced performance.
Crafted from high-quality steel, often chrome or stainless steel, these bearings boast exceptional resistance to wear and corrosion, further solidifying their durability and reliability.
Precision manufacturing is the cornerstone of the 6300 series. Stringent standards ensure tight tolerances and consistent dimensions across the entire series, guaranteeing reliable, consistent performance. Advanced machining and grinding techniques craft smooth and precise raceways and ball bearings, ensuring every bearing delivers optimal performance.
Lubrication is crucial for deep groove ball bearings, and the 6300 series excels in this regard. They are often pre-lubricated with high-quality grease, chosen to reduce friction and prevent harmful metal-to-metal contact. This lubrication not only enhances performance but also extends operational life.
Some variants are designed for relubrication, offering users the flexibility to maintain peak performance over an extended service life.
Many 6300 series bearings come equipped with shields or seals, serving as robust barriers against contaminants and moisture. This protection ensures optimal performance, even in harsh environments.
Versatility defines the 6300 series, engineered to accommodate a wide range of radial and axial loads. Their deep groove design allows them to adeptly handle both types of forces, making them the go-to choice for various applications in automotive, aerospace, agriculture, manufacturing, and beyond.
Temperature and speed ratings tailored to diverse operating conditions ensure these bearings operate reliably across a wide spectrum of environments and applications.
The 6300 series finds its place across industries and applications, from machinery to conveyors, pumps, electric motors, and more. Their adaptability solidifies their status as indispensable components in countless mechanical systems.
Their exceptional performance, durability, and versatility make the 6300 series a cost-effective solution. Extended service life and minimal maintenance translate into tangible cost savings for businesses and industries that rely on them.
These bearings enjoy widespread availability from numerous manufacturers, ensuring sourcing and replacing them is hassle-free. They come in various sizes and configurations to cater to the unique requirements of diverse applications.
In conclusion, the 6300 series deep groove ball bearings owe their unmatched performance to ingeniously engineered design, precision manufacturing, judicious lubrication, and adaptability to diverse operating conditions. These unassuming yet indispensable bearings play a pivotal role in the efficient and reliable functioning of machinery across diverse industrial sectors, exemplifying mechanical engineering excellence.
